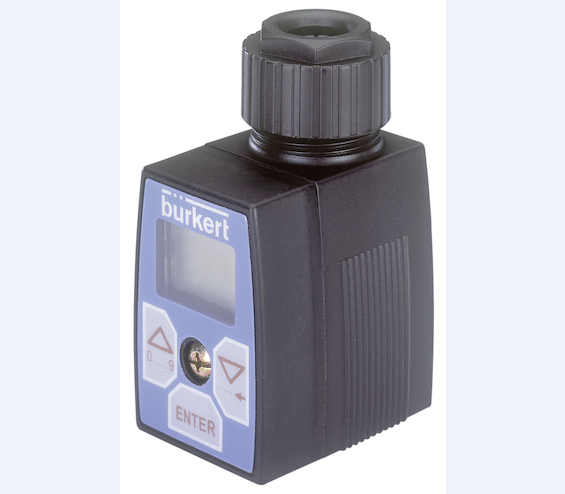

burkert 通用调节器8611型

质量稳定：实行全过程质量监控，细致入微，全方位检测！
价格合理：高效内部成本控制，减少了开支，让利于客户！
交货快捷：先进生产流水线，充足的备货，缩短了交货期！

销售热线
021-37013235 13621973906

图文传真
37013235-818

产品描述服务承诺订货流程温馨提示

产品样本

DS8611-standard-EU-EN.pdf

型号描述

8611 型通用调节器具有紧凑型的结构方式，非常适合同样采用紧凑型设计的调节系统。这种调节器经测试可兼容与所有 Bürkert 比例阀和传感器，在使用标准信号（4-20 mA、0-10 V 或 PWM 输出信号）的前提下，可以与各种非 Bürkert 调节阀相组合。这种具有 PI 特性的过程调节阀，配备了大量的附加功能。通过 3 个模拟输入端，可以将工艺实际值作为标准信号 (4-20mA / 0-10V)、电阻信号 (PT100) 或频率信号读入。通过电流或电压标准信号或者键盘，可以规定工艺额定值。特别适合温度调节任务，可以设计其下方安装有流量调节装置的级联式结构。通过控制比例阀和过程阀，可以在流体技术领域中完成各种各样的调节任务，也可将其应用于液态的或气态的介质。

1）持续式、两点式、三点式及 On/Off 调节
2）比例调节
3）传感器输入端（4-20 mA，0-10 V，频率，Pt100）
4）比例阀、过程阀和电动阀的控制装置
5）预先定义所有的 Bürkert 比例阀和流量传感器

Type Description

Thanks to its compact design, the universal 8611 controller is especially designed for compact control system applications.It is compatible and tested with all Bürkert proportional valves and sensors and can be connected with every none-Bürkert Control valve by standard signal (4-20 mA, 0-10 V or PWM-output). The proportional & Integral (PI) process controller is equipped with many additional functions. The process value feedback can be supplied as one of three analog inputs; a standard signal (4-20 mA/0-10V), frequency or RTD signal; directly to the universal controller. The process switching points can be set via a 4-20 mA or 0-10 V signal or with the keypad For temperature specific control, it is possible to set a cascade structure with both temperature and flow as inputs. Thanks to the proportional control capabilities, a wide range of control functions can be performed in a variety of liquids and gas medias.

1）Continuous, 2-point, 3-point and On/Off control
2）Ratio control function
3）Sensor inputs (4-20 mA, 0-10 V, frequency, RTD)
4）Control of proportional, process and motor valves
5）Bürkert proportional valves and flow meters are memorized

通用调节器8611型部分订货号如下：

169308 8611-A-E-V-A-06-0-03-1-01-2-09
177091 8611-A-E-A-A-12-0-02-1-01-6-09
177454 8611-A-E-A-A-12-0-02-1-01-2-09
177455 8611-A-E-A-A-12-0-01-1-06-3-09
177456 8611-B-E-A-A-12-0-08-1-01-6-09
177457 8611-B-E-A-A-12-0-08-1-01-2-09
177458 8611-B-E-A-A-12-0-09-1-01-3-09
177460 8611-C-E-A-A-12-0-04-1-01-6-09
177462 8611-C-E-A-A-12-0-04-1-01-2-09
177463 8611-C-E-A-A-12-0-10-1-01-3-09
182383 8611-C-E-A-Y-14-0-04-1-01-2-09
186289 8611-C-E-A-A-13-0-04-1-08-1-09
655980 KOMP-000-8611-G655-980-00-00655980
