产品样本
型号描述

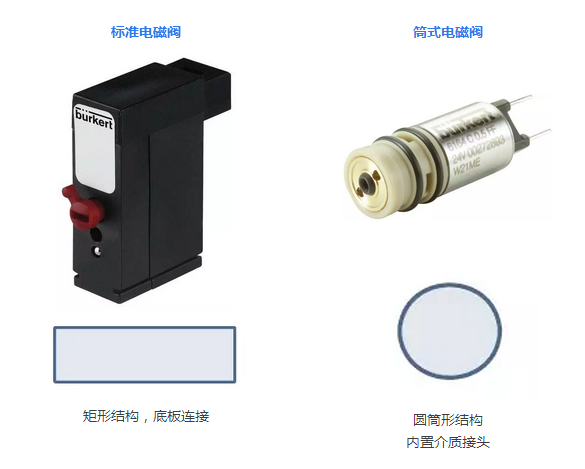

6164 型的研发目的: 通过辅助阀的最佳可集成性, 实现在集成块或注塑件上的气动调控, 从而实现复杂的结构形态。 通过绝对的可靠性、高于业内平均水平的使用寿命和流体参数，该型号阀门设立了新的标准。
结构紧凑，每阀安装宽度11mm
内孔尺寸：
DN0.5mm(9bar)-1.2mm (1.5bar)
耐用性好、可靠性高
功耗低，可选ATEX Ex ia
最佳可集成性设计
1）节省60 % 多的空间和 20 % 的重量
2）使用寿命大于100 000 000次
3）开关噪音仅为42 dB，享受安静
所获得的多项认证和其适应性，使其在医学中的应用成为可能，如：在牙科技术中仪器侧边接口侧的应用和在呼吸机氧气控制技术中的应用。
Type Description
Customer specific applications are becoming more complex. Size, fluidic performance, low power consumption and cost efficiency are critical criteria. Therefore the demands on the components used are increasing. Type 6164 was developed with the goal, to simplify pneumatic control with optimum integration of a pilot valve in block and plastic moulding parts. Thus, making a more compact design possible. This valve sets new standards with its uncompromising reliability, above average life cycle span and excellent fluidic characteristics. Various certifications and conformities make the use of the valve in medical applications such as media multiplexers in dental technology and oxygen control in respirators possible.
1）Compact design with 11 mm width per station
2）Orifices from 0,5 mm (9 bar) to 1,2 mm (1,5 bar)
3）High durability and reliability
4）Low power consumption, as well as optional ATEX Ex ib version
5）Design for optimum integration
