2/2-way valve with isolating diaphragm for medium up to +100ºC

• Normally closed or open
• Body material: Brass, Stainless steel
• Double spindle seal
• Compact design

The externally controlled valve is pneumatically operated. It consists of a diaphragm actuator and a 2-way valve body. Between the valve housing and the drive, there is a hermetically sealed membrane.The diaphragm actuator moves a spindle with valve disc against a spring and switches the valve. The spindle is designed glandless with double seal. The actuator body is made out of epoxy resin.

Circuit function A
2/2-way valve, externally controlled, normally closed by spring operation with pilot valve

Circuit Function B
2/2-way valve, externally controlled, normally opened by spring,operation with pilot valve

Type 0263 - 气动操作的二位二通阀，带有隔膜

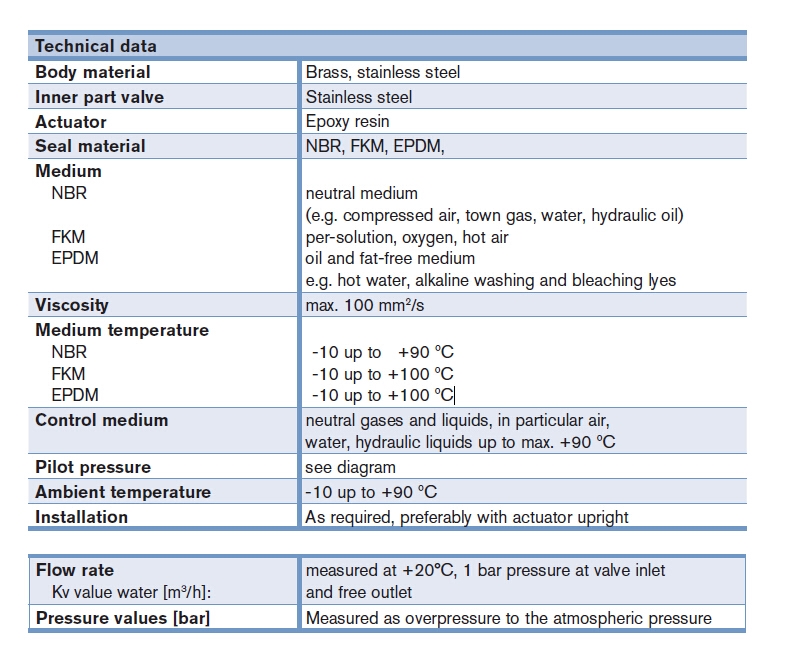

0263型隔膜式电磁阀技术参数如下：

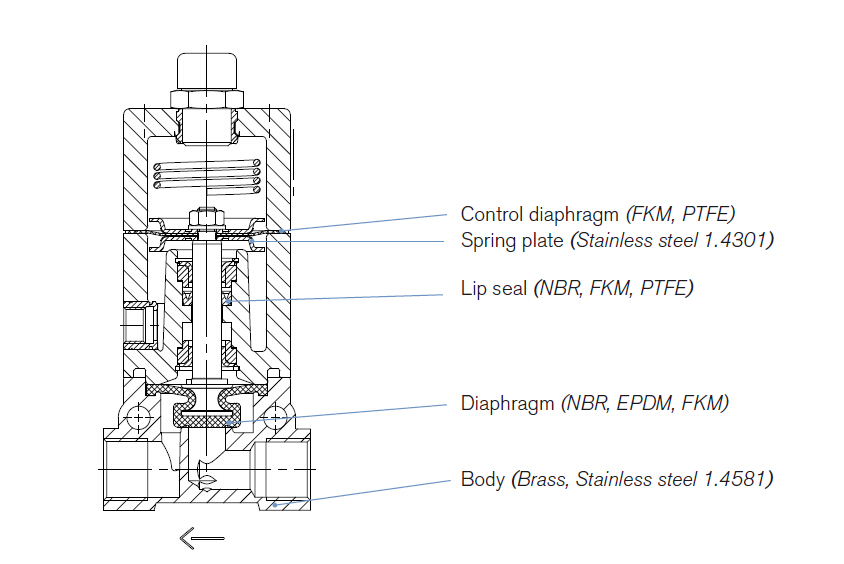

0263型隔膜式电磁阀结构示意图如下：

0263型隔膜式电磁阀部分订货号如下：

027963 027342 027929 026903 026065 026094 026246 026207 028023 027695 027881 028980 028037 026455 027987 028827 027962 027428 026944 02732
