Miniature Solenoid Valve with Isolating Diaphragm for Analytical Applications

• FKM or EPDM Separating diaphragm isolates solenoid system from operating fluid
  Compact design
  Specific testing and cleaning available
  Short response time
  Electrical connection:DIN-plug or leads
  Body material:Stainless steel

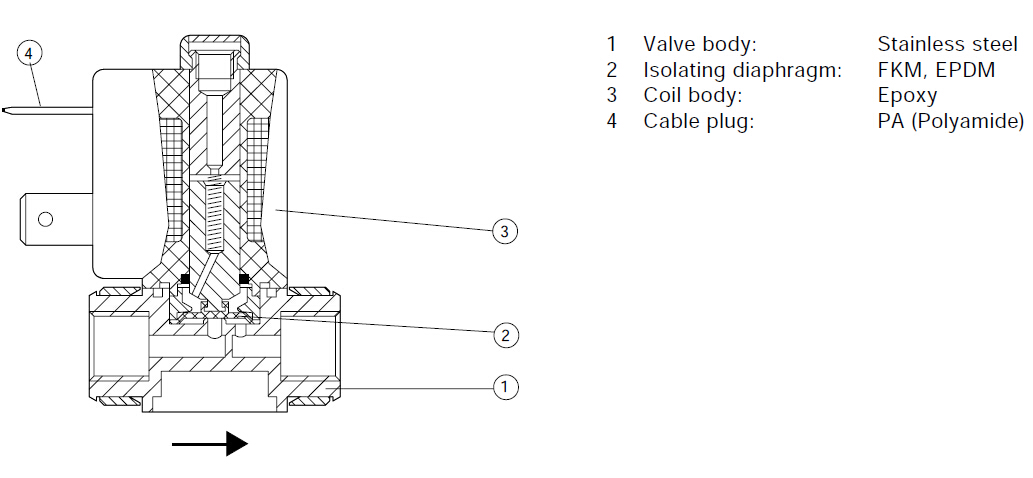

Type 200 is a direct-acting plungertype solenoid valve normally closed by spring action (circuit function A).A diaphragm isolates the fluid from
the solenoid system.When energized, the solenoid armature is drawn against a spring to open the valve.The solenoid epoxy encapsulation efficiently dissipates the heat generated by the coil.Specific testing and cleaning and low power versions are available according to application requirements.

Applications

• Laboratory instruments
• Small-scale instrument
• Gas control instruments
• Shut-off, dosing, filling,ventilating
• Welding technology
• Difficult and slightlyaggressive media

Type 0200 - 直动式二位二通升降式衔铁阀

紧凑型结构形式

0200型直动式电磁阀部分订货号如下：

136445 Q 136464 K 136449 U 136468 X 136452 P 136472 K 136456 K 136476 P 136461 Q 136481 D 136463 J 136483 F 136460 T 136480 Q 136462 R 136482 E 136447 J 136466 M 045956 Y 136470 V 136454 R 136474 M 136458 V 136478 Z 136446 R 136465 L 136450 Z 136469 Y 136453 Q 136473 L 136457 L 136477 Q 136448 T 136467 N 136451 N 136471 J 136455 J 136475 N 136459 W 136479 S

德国burkert宝德主营产品如下：
Burkert换挡阀、旁通阀、电磁阀、微流量阀、升降式衔铁阀、二通摇杆阀、隔膜阀、活塞阀、气动控制装置、活塞滑阀、脉冲阀、阀岛、隔膜阀块、开关柜、截止阀、角座阀、底部排放阀、球阀、蝶阀、先导阀、调节阀、开关、止回阀、比例阀、流量调节器、传感器、流量测量仪、流量计、变送器、隔膜泵。
