2/2-way Solenoid Valve for aggressive media, true union,Ø20-63
• Isolating diaphragm between the solenoid and fluid
• Non-metallic valve internals
• Pivoted armature, with lockable manual override
• Simple installation and removal
Servo-assisted solenoid valve with diaphragm,normally closed function. Hermetic isolation of fluid from the actuator. A minimum differential pressure of 0.5 bar is required to fully open the valve.Valves can be mounted or removed radially for a space-saving installation.
Type 0142 - 伺服辅助式两位两通隔膜电磁阀
0142为伺服式隔膜电磁阀。要完全打开或关闭阀门,需要一个最小压差。根据不同的应用,可以选择各种膜片材质和工作方式。阀体材质为PVC 或 PVDF。 其两位三通先导阀的常开和常闭功能可方便地进行转换:只需将其在主阀座上进行旋转即可。先导阀位置反馈可以采用开关或 NAMUR 信号。电磁线圈采用耐化学腐蚀的环氧树脂封装。0142 型配备了手动开关,可用于调试和测试。如有节能要求,所有线圈都可提供节电式。与 DIN EN 17301-803 A 型电缆插头配套,该阀的安全防护等级为 IP65 和 NEMA 4X。
伺服辅助式隔膜电磁阀,最大通径 DN 63
适用于腐蚀性介质和污染介质的塑料电磁阀
介质隔离式,不含金属材料
使用方便的手动开关
具有反馈功能,增加开关安全性
0142型隔膜式电磁阀功能原理图如下:

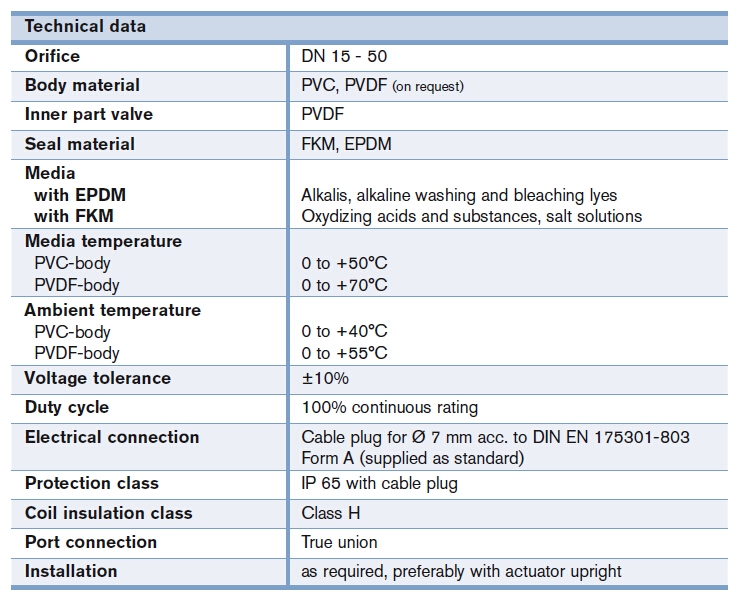

0142型隔膜式电磁阀技术参数如下:

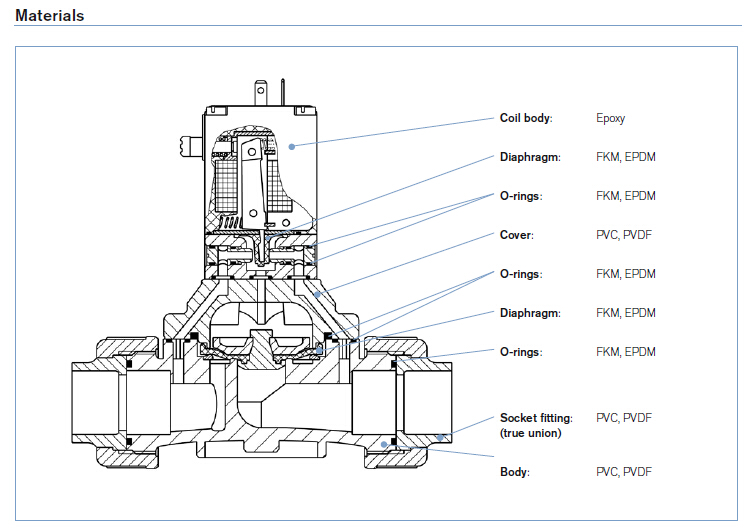

0142型隔膜式电磁阀结构原理图如下:

0142型隔膜式电磁阀部分订货号如下:
Seal material FKM
Ø 20 15 5.0 0,5 - 6 PVC 041938 041934
Ø 25 20 6.0 0,5 - 6 PVC 042008 042005
Ø 32 25 14.0 0,5 - 6 PVC 042079 042113
Ø 40 32 16.0 0,5 - 6 PVC 042169 042133
Ø 50 40 30.0 0,5 - 6 PVC 042198 042245
Ø 63 50 36.0 0,5 - 6 PVC 042264 042262
Seal material EPDM
Ø 20 15 5.0 0,5 - 6 PVC 041980 041911
Ø 25 20 6.0 0,5 - 6 PVC 042045 041986
Ø 32 25 14.0 0,5 - 6 PVC 042047 042126
Ø 40 32 16.0 0,5 - 6 PVC 042183 042128
Ø 50 40 30.0 0,5 - 6 PVC 042195 042247
Ø 63 50 36.0 0,5 - 6 PVC 042266 042261
