Type 0131 - 直动式两位两通或两位三通电磁阀
0131为直动式电磁阀。根据不同的应用，可以选择各种密封材质。由于在执行机构和阀体之间采用了隔离膜片，所以该阀可用于控制腐蚀性介质，如酸液和碱液等。阀体材质为 PVC 或 PVDF。电磁线圈采用耐化学腐蚀的环氧树脂封装。所有 DC 式都带“kick and drop”电子线路，用以降低功耗。可选的电气反馈功能能够可靠地检测开关位置。与 DIN EN 17301-803 A 型电缆插头配套，该阀的安全防护等级为 IP65。
直动式介质隔离电磁阀，最大通径 DN 25
防震线圈
DC 式节能节电
采用电气位置反馈，提高安全性
手动开关结构坚固、使用方便
Direct-acting 2/2 or 3/2-way solenoid valve
• Direct-acting, media-separated valve up to DN 25
• Vibration resistant, block mounted coil system
• Energy saving power reduction for DC versions
• High safety due to electrical position feedback
• Robust, service friendly manual override
The valve operates according to the lever principle and can therefore switch big orifi cesdirectly. Available in 2/2-way version as well as a 3/2-way valve. The armature works horizontally on a tightly coupled toggle. The cylinder seal, located at the lower lever, is pressed by the horizontal movement of the valve seat. The plastic-coated metal lever forms a unit with the implemented gas-tight membrane. With this construction the actuator is disconnected from the media fl uid housing.

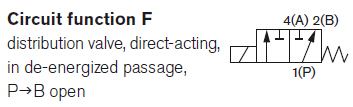

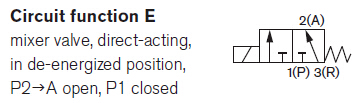

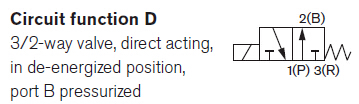

0131型直动式电磁阀功能示意图如下：

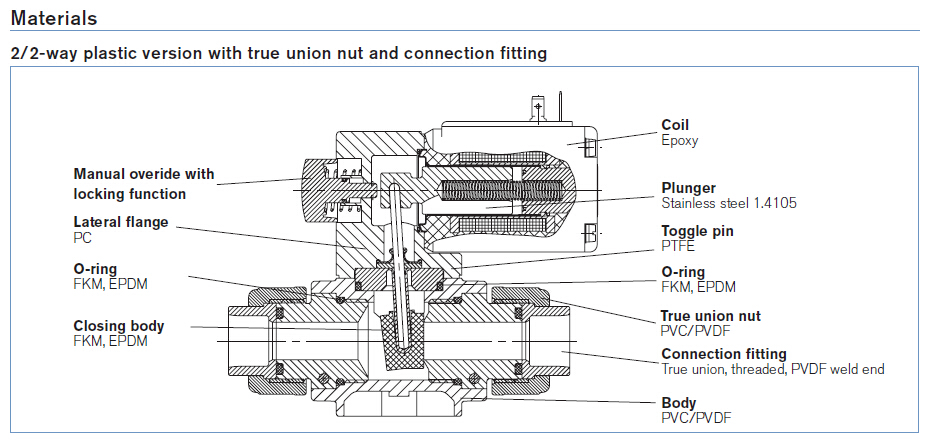

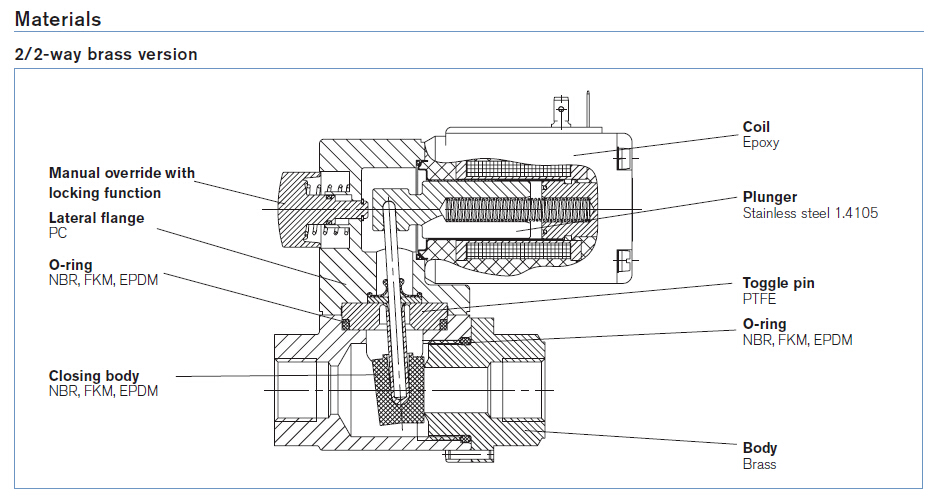

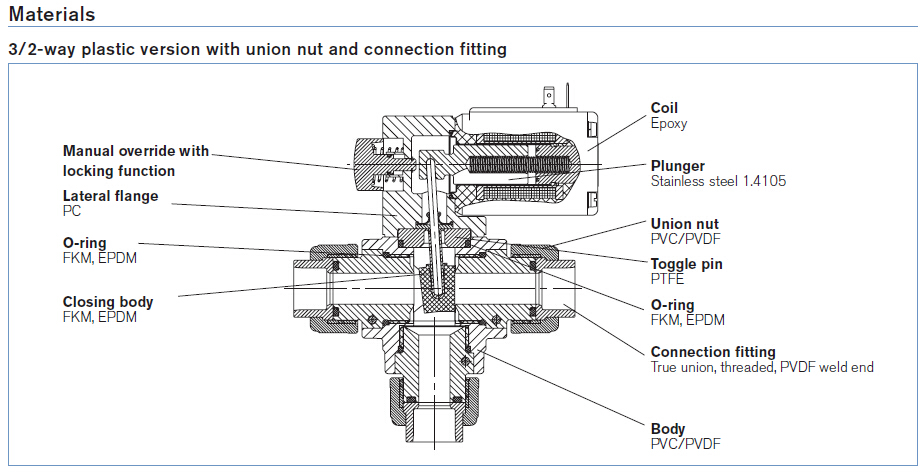

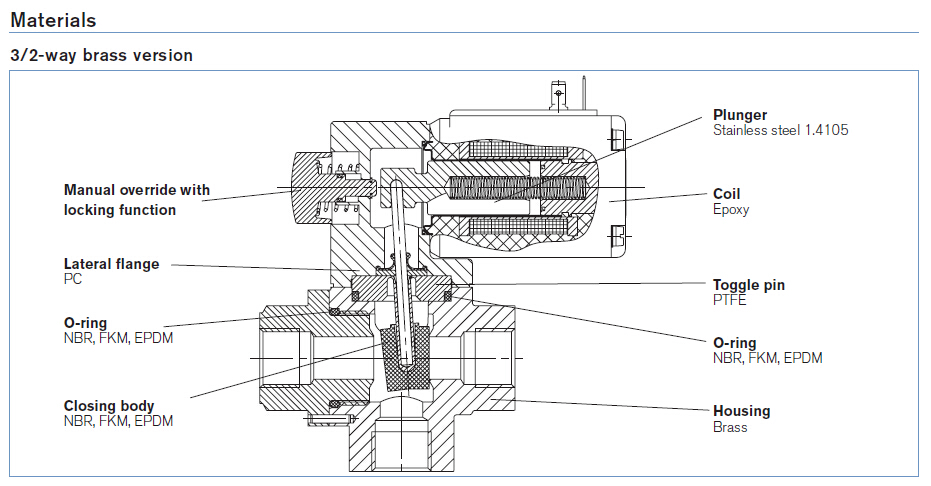

0131型直动式电磁阀结构原理示意图如下：
0131型直动式电磁阀部分订货号如下:
076537 055770 064266 052546 025876 049883 058279 052071 067076 040921 054564 046648 053634 048997 059302 062737 062481 049470 021964 051556 064025 062960 045916 062124 140798 062119 079567 172866 065194 052183 058362 052619 058710 050904 020687 042470 058363 068352 066280 208100 235041 053050 069814 058915 058900 056512 023759 056795 046949 264450 050549 056791 067832 054831 050809 168193 051028 055423 049222 056797 045225 053992 051257 041272 131273 274340 197985 056281 049793 057475 053059 054102 052221 049751 063602 048490 051685 058371 046466 050461 053807 086273 047915 052953 050443 056060 055817 056789 047398 056663 053882 051641 050787 058369 056794 056495 050551 051351 058361 053221 047503 045439 051969 78854 130920 255332 054053 048664 044502 025537 040549 069752 048622 059360 046643
