产品样本
型号描述

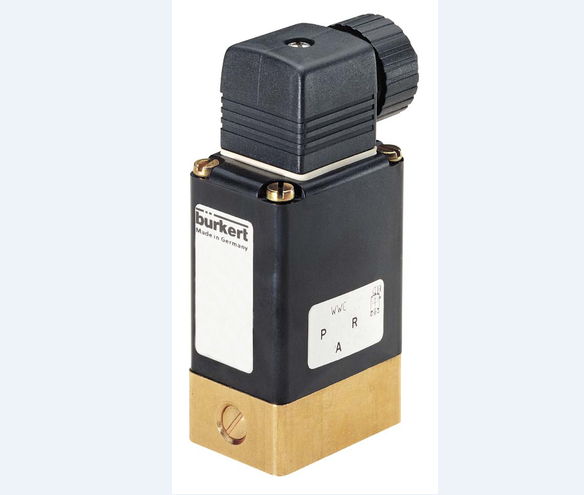

6106 型直接作用式摆动电磁阀特别适用于中性气态介质 传递进入介质中的热量实现最小化,因为还须通过不锈钢板隔断壳体和线圈。可以直接给阀门装上法兰或者将其安装在单层或者多层连接板上。其可供剂量控制、加注、混合和分离之用。
1)紧凑型结构,排列间距 16 mm
2)DN 0.9 和 DN 1.2 (10 bar)
3)使用寿命长
4)电功率消耗低,以及可以选择 ATEX Ex ia 规格。
5)适用于气动应用
Type Description
The direct-acting rocker solenoid valve type 6106 is designed for use on neutral gaseous mediums. The heat input in the medium is minimal, because the housing is separated from the coil by a stainless steel plate. The valves can be mounted directly or also single or manifold mounted. They are used for dosing, filling, mixing and distributing small quantities of medium.
1)Compact design with 16mm width
2)DN 0,9 and DN 1,2 (10 bar)
3)High lifecycle
4)Low power consumption, ATEX Ex ia on request
5)For pnmeumatic applications
电磁阀部分订货号如下:
126411 6106-C01,2FFPAFB03-0-024/DC-02 * JB02
126412 6106-C01,2FFPAFB03-0-BBH/DC-03 * JB02
126413 6106-C01,2FFPAFB03-0-BAR/DC-03 * JB02
126414 6106-C01,2FFPAFS10-0-024/DC-02 * JB02
126415 6106-C01,2FFPAFS10-0-BBH/DC-03 * JB02
126416 6106-C01,2FFPAFS10-0-BAR/DC-03 * JB02
126417 6106-C00,9FFPAFB03-0-024/DC-01 * JB02
126418 6106-C00,9FFPAFS10-0-024/DC-01 * JB02
126419 6106-D01,2FFPAFB03-0-024/DC-02 * JB02
126420 6106-D01,2FFPAFS10-0-024/DC-02 * JB02
126421 6106-D00,9FFPAFB03-0-024/DC-01 * JB02
126422 6106-D00,9FFPAFS10-0-024/DC-01 * JB02
131900 6106-C00,9FFPAFS10-0-024/DC-01 * HA09+IB05+JB02+MW05
131901 6106-C01,2FFPAFS10-0-024/DC-02 * HA09+IB05+JB02
132966 6106-C00,9FFPAFB03-0-024/DC-01 * JB02+MA11
133525 6106-C01,2FFPAFB03-0-024/DC-02 * JB04
134280 6106-C01,2FFPAFB03-0-024/DC-02 * JB02+MA11
138319 6106-T01,6FFPAFB03-0-024/DC-02 * JB02
138680 6106-C00,9FFPAFS10-0-012/DC-01 * JC09+JW04
139031 6106-C01,2FFPAFB03-0-012/DC-02 * JC09+JW04
139272 6106-C00,6FFPAFB03-0-EXI/21-AV * JB04+PD88
140054 6106-T02,0FFPAFB03-0-024/DC-AS * JB02
141073 6106-C01,2FFPAFB03-0-024/UC-02 * CZ24+JB04
141387 6106-C01,2FFPAFB03-0-BAR/UC-03 * CZ24+JB04
142489 6106-C00,9FFPAFB03-0-024/UC-01 * CZ24+JB04
142490 6106-C01,2FFPAFB03-0-BBH/UC-03 * CZ24+JB04
147279 6106-T02,0FFPAFB03-0-024/DC-02 * JC09+JW03
147749 6106-C01,6FFPAFB03-0-024/DC-AS * JC09+JW04
147798 6106-C00,6FFPAFB03-0-EXI/22-AW * JB04+PD88
148047 6106-D00,9FFPAFB03-0-024/DC-01 * JC09+JW04
148100 6106-D00,9FFPAFB03-0-024/UC-01 * CZ24+JB04+KB07
148699 6106-C00,9FFPAFB03-0-024/DC-01 * JC09+JW04
148701 6106-C01,2FFPAFB03-0-BAR/UC-03 * CZ21+JB04
149140 6106-C01,2FFPAFB03-0-024/DC-02 * JB02+MA11+NK40
150211 6106-C01,2FFPAFB03-0-024/UC-02 * CZ21+JB04
150266 6106-C01,2FFPAFB03-0-024/DC-02 * HA01+JB02
150392 6106-C01,2FFPAFB03-0-024/DC-02 * JC09+JW03
150539 6106-C00,9FFPAFB03-0-024/DC-01 * JB04
150546 6106-C01,2FFPAFB03-0-024/DC-02 * HA01+JC09+JW03
150547 6106-C01,2FFPAFB03-0-024/DC-02 * JC09+JW01
151504 6106-C00,9FFPAFS10-0-BDS/DC-02 * JB02+MT90+PB39
151936 6106-C00,6FFPAFB03-0-EXI/22-AW * HA01+JB04+PD88
153602 6106-C01,2FFPAFB03-0-024/DC-02 * JC09+JW04
154437 6106-T01,2FFPAFB03-0-024/DC-02 * JB02+KQ24
154835 6106-C00,9FFPAFB03-0-012/DC-01 * JB02+MD07
155137 6106-C01,2FFPAFS10-0-024/DC-02 * HA01+JB02
155424 6106-T02,0FFPAFB03-0-024/DC-AS * HA01+JC09+JW04
156537 6106-C00,9FFPAFS10-0-024/DC-01 * HA09+IB05+JB02+MW05+NA63+NF01
156538 6106-C00,9FFPAFS10-0-024/DC-01 * HA09+IB05+JB02+MJ27+MW05+NA63+NF01
156544 6106-C01,2FFPAFB03-0-024/DC-02 * JF80
156622 6106-C01,2FFPAFB03-0-BAR/DC-03 * JB04
157052 6106-C01,2FFPAFB03-0-024/DC-02 * HA01+JB04
158063 6106-D01,2FFPAFS10-0-006/DC-01 * JC09+JW04+NF01
158351 6106-D01,2FFPAFB03-0-BAR/UC-03 * CZ21+JB04
159329 6106-C01,2FFPAFB03-0-024/DC-AS * JB02
159477 6106-C01,2FFPAFS10-0-012/DC-02 * JC09+JW04
160339 6106-C01,2FFPAFB03-0-012/DC-02 * JB02
162069 6106-DAAAAFFPATA01-0-024/DC-02 * JB02+JG08+MA11+MU02+MU10
162300 6106-T00,9FFPAFB03-0-024/DC-AS * HA07+JB02
163008 6106-C01,2FFPAFB03-0-012/DC-01 * JB02+KR67+MD07
166843 6106-T01,2FFPAFB03-0-024/DC-02 * JC09+JW04+KQ24
168920 6106-D01,2FFPAFB03-0-024/DC-02 * HA01+JC09+JW03
169712 6106-C01,2FFPAFS10-0-024/DC-02 * HA01+JF80
169903 6106-I02,0FFPAFB03-0-024/DC-01 * HA01+JB02+JB03+MA11+PC39
171590 6106-C00,9FFPAFB03-0-024/DC-01 * JB02+PE54
173293 6106-Q02,0FFPAFB03-0-024/DC-01 * HA01+JB02+JB03+MA11+PC39
192436 MICR-6106-WE-192436G-F6007101
192802 MICR-6106-SI-192802Q-C1,2F375
194354 6106-C00,9FFPAFB03-0-024/DC-01 * JB02+NA01+SI01
197402 MICR-6106-SG-0197402-6106GENE
197404 MICR-6106-SG-0197404-6106GENE
197866 MICR-6106-SG-0197866-6106BOE8
197868 MICR-6106-SG-0197868-6106BO16
456704 6106-C00,9FFPAFB03-0-024/DC-01 * JB02+MA11+PD02
456705 6106-C01,2FFPAFB03-0-BBH/DC-03 * JB02+MA11+PD02
457714 6106-C00,9FFPAFB03-0-024/DC-01 * JB02+PD02
457715 6106-C01,2FFPAFB03-0-024/DC-02 * JB02+PD02
457716 6106-C01,2FFPAFB03-0-BBH/DC-03 * JB02+PD02
457717 6106-C01,2FFPAFB03-0-BAR/DC-03 * JB02+PD02
457718 6106-C00,9FFPAFS10-0-024/DC-01 * JB02+PD02
457719 6106-C01,2FFPAFS10-0-024/DC-02 * JB02+PD02
457723 6106-D01,2FFPAFB03-0-024/DC-02 * JB02+PD02
457724 6106-D00,9FFPAFS10-0-024/DC-01 * JB02+PD02
458282 6106-C00,6FFPAFB03-0-EXI/21-AV * JB04+PD88+PD96
459003 6106-C00,9FFPAFB03-0-012/DC-01 * JB02+PD02
462678 6106-C01,2FFPAFB03-0-024/DC-02 * HA01+JB02+PD02
462679 6106-D01,2FFPAFB03-0-024/DC-02 * HA01+JB02+PD02
462681 6106-C01,2FFPAFB03-0-BBH/DC-03 * HA01+JB02+PD02
462682 6106-D01,2FFPAFB03-0-BBH/DC-03 * HA01+JB02+PD02
639695 KOMP-005-6106-G639-695-00-639695B
639862 KOMP-005-6106-F639-887-00-639862A
639863 KOMP-005-6106-F639-887-00-639863B
639864 KOMP-005-6106-F639-887-00-639864C
639865 KOMP-005-6106-F639-887-00-639865D
639866 KOMP-005-6106-F639-887-00-639866E
639867 KOMP-005-6106-F639-887-00-639867F
639868 KOMP-005-6106-F639-887-00-639868Q
639885 KOMP-005-6106-F639-885-00-639885S
639887 KOMP-005-6106-F639-887-00-639887U
643035 KOMP-005-6106-G643-035-00-643035U
643566 KOMP-000-6106-G643-566-00-643566D
