Servo-assisted 2/2-way diaphragm valve

Servo-assisted diaphragm with diameter of up to DN 50
• Hard-coupled diaphragm opens without differential pressure
• Vibration-proof, block screwed coil system
• Damped design for quiet closing
• Energy-saving power reduction in all DC versions

The 0290 valve is a servo-assisted solenoid valve of the S.EV series. The valve opens without differential pressure. The opening process is supported by the fi xed coupling of the diaphragm to the plunger . In the process, the integrated ‘soft-kick’ function opens in a manner that is gentle on the material. Various diaphragm material combinations are available depending on the application. The housing offered is rounded out by a stainless steel and grey cast iron version. The solenoid coils are moulded with a chemically resistant epoxy. ‘Kick and drop’ electronics are moulded into all DC variants for reduced electrical power consumption. In combination with a plug in accordance with DIN EN 17301-803 Form A,the valves satisfy protection class IP65 – in
combination with a stainless steel housing NEMA 4X .

Type 0290 - 伺服辅助式两位两通隔膜电磁阀

0290为伺服式S.EV系列电磁阀。不需压差即可打开阀门。其打开过程是通过膜片与铁心的固定耦合完成的。内置的“soft-kick”功能以温和的方式打开阀门。根据不同的应用，可以选择各种膜片材质。阀体材质为不锈钢和灰铸铁。电磁线圈采用耐化学腐蚀的环氧树脂封装。所有 DC 式都带“kick and drop”电子线路，用以降低功耗。与 DIN EN 17301-803 A 型电缆插头配套，该阀的安全防护等级为 IP65，不锈钢阀体式 NEMA 4X。

伺服辅助式隔膜电磁阀，最大通径 DN 50
固定耦合的隔膜，没有差压也可以打开阀门
防震线圈
阻尼设计，阀门动作静音
DC 式节能节电

Circuit function A

2/2-way valve,normally closed by spring force

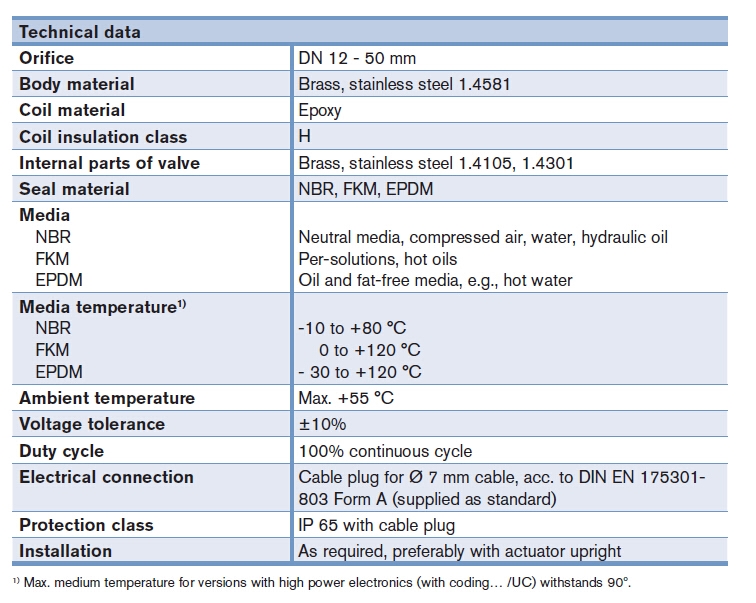

0290型隔膜式电磁阀技术参数如下：

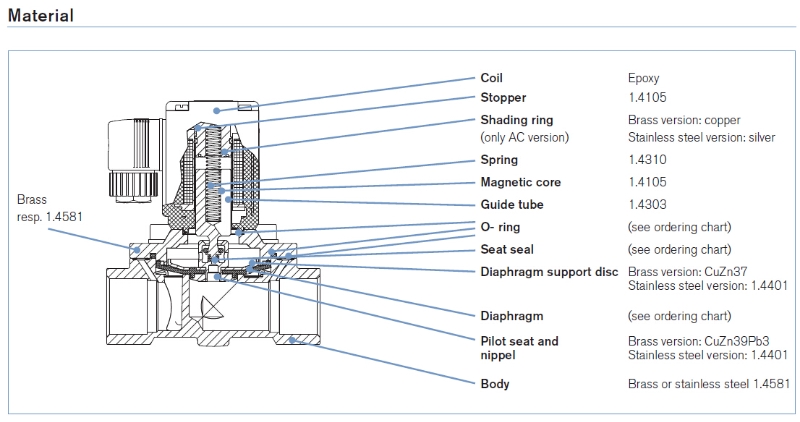

0290型隔膜式电磁阀结构示意图如下：

0290型隔膜式电磁阀部分订货号如下：

043816 050294 044373 049500 048707 049229 042886 059240 045931 049050 044816 049055 058766 049518 045292 057127 053910 053674 049745 067973 065033 058427 045290 069138 048171 053675 045293 053869 066981 058627 054245 057155 045291 064887 085290 085291 052513 085292 087203 085259 085294 085295 085297 085296 087663 087732 085299 085301 085300 0774942 043659 053595 043654 052358 048708 049987 042888 058407 045765 048606 043553 049053 065121 065362 066381 064701 066594 066460 059910 065025 025870 065414 018121 065542 066125 069477 018348 059901
